Motorola APX 6000XE Enhanced

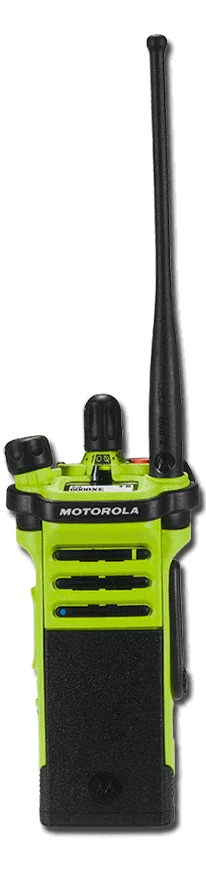

Motorola Solutions APX 6000XE

Motorola Solutions

APX 6000XE Enhanced

Working together with firefighters around the world, we redefined safety and introduced the APX Extreme Series, a combination of feature-rich, ergonomically advanced and ultra-durable radios that are safe, easy and efficient to use.

From day one, the APX 6000XE P25 two-way portable radio has met agencies’ most demanding performance expectations. It delivers trusted performance in a single-band solution without compromising on the extreme form factor or features that are required for routine activities and emergencies. Now, as the ever increasing needs of public safety personnel grow, we are evolving the APX 6000XE to support new technologies like WiFi, Adaptive Audio Engine and Bluetooth® 4.0 wireless technology.

Frequency Band:
700 MHz, 800 MHz, UHFR2, UHFR1, VHF

Frequency Range:
700/800 (763-776, 793-806, 806-824, 851-870 MHz)
VHF (136-174 MHz)
UHF Range 1 (380-470 MHz)
UHF Range 2 (450-520 MHz)

Power Output:
1-6 Watts Max

Number of Channels/Groups/Zones:
96 / 1,000 Channels

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):

Channel spacing:
25/20/12.5 kHz

Dimensions H x W x D (with standard battery)
Length 6.2 in 139 mm
Width Push-To-Talk button 2.4" 60.7 mm
Depth Push-To-Talk button 1.40" 35.6 mm
Width Top 3.3" in" 75.7 mm
Depth Top 2.1" 40.1 mm
Depth Bottom of Battery 1.2" 31.5 mm

Weight (without battery)
13.7 oz

Keypad / Keys
Model 1.5: None
Model 2.5: Backlit keypad, 3 soft keys, 4 direction Navigation key, Home and Data buttons
Model 3.5: Backlit keypad, 3 soft keys, 4 direction Navigation key, 4x3 keypad, Home and Data buttons

Display
Model 1.5: Full bitmap monochromatic LCD top display, 1 line text x 8 characters, 1 line of icons, No menu support, Multi-color backlight
Model 2.5/3.5: Top display plus: Full bitmap color LCD display, 4 lines of text x 14 characters, 2 lines of icons, 1 menu line x 3 menus, White backlight

Operating temperature
-30 ºC to +60 ºC

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP68

SINGLE-BAND OPERATION

Supported Frequency Bands: 7/800 MHz, VHF and UHF Range 1 and Range 2 bands.
Modes and Protocols include: Analog MDC-1200 and QCII, Digital P25, Conventional or Trunked, Smartnet / SmartZone, clear or secure, repeater or direct.

FIT FOR THE MISSION

Aggressive T-shape so the radio is easier to grip even with wet or slippery hands.
Top Display provides quick access to radio status information and critical notifications.
Intelligent Lighting uses 3 simple colors to alert users of critical radio events like emergency, low battery, out of range and private calls and pages.
Voice Announcement provides audible confirmation of zone/channel selections and various feature like scan, direct mode, emergency, encryption and controls lock.
Radio Profiles allows the agency to create custom user experience based on the role and mission of the user.

RUGGEDNESS

Aluminum Alloy Endoskeleton protects the radio's interior from water intrusion even if the outer housing is breached.
IP 68 Rating (standard) ensures the radio can withstand 2 meters of water submersion for 4 hours.
MIL-STD 810 C, D, E, F, G rating ensures you can rely on your radio in the most extreme environments.
Tempered Glass protects the radio's color display user interface from scratches, impact and pressure.
Dual Latch Battery protects the radio from resetting, powering off or ejecting the battery upon impact from drops.

SECURITY

Multiple Hardware Encryption Algorithms like AES, DES, ADP with up to 128 keys so sensitive information stays protected from scanners and eavesdroppers.
Over-the-air Re-key (OTAR) to efficiently update encryption keys of fielded radios over time.
P25 Radio Authentication ensures only valid users can access the system.
Two-factor Authentication allows users to securely query databases.

ADAPTIVE AUDIO ENGINE

Adaptive Dual-sided Operation using beam-forming technology so you can talk into either side of the radio.
Adaptive Noise Suppression adjusts the audio algorithm so you can cancel out the noise as it changes in the environment.
Adaptive Speaker Equalization adjusts the 3 watt loud speaker settings based on volume selection so the sound is optimized for talker authenticity at lower volumes and speech intelligibility at higher volumes.
Adaptive Gain Control adjusts microphone gain based on how loud you talk into the radio to ensure a consistent audio level on the receiving end.
Adaptive Windporting engages a third microphone in order to cancel out wind noise.

INTEGRATED WI-FI AND DATA CONNECTIVITY

Update Your Radio Fleet Software more efficiently without interrupting voice communications or waiting for idle radios.
Up to 20 WiFi Networks can be provisioned in the radio so that users can seamlessly receive radio software updates at facility WiFi access points or in the field via WiFi hot spots.
GPS Outdoor Personnel Tracking shares your personnel's location, resulting in more efficient task assignment and enhanced officer safety.
Mission Critical Wireless Bluetooth 4.0 places a wide range of wireless accessories at your disposal and provides personnel with an added level of security by improving response time in emergencies. With Emergency Find Me, a Bluetooth-enabled beacon signal guides other Bluetooth-enabled APX radios within range to assist the user in distress.
Mission Critical Geofence ensures fast communication and collaboration across multiple departments arriving on a scene by automatically placing first responders in the same talkgroup when they enter an agency-defined virtual barrier.

Motorola NAF5085

NAF5085

700/800 MHz, GPS Whip Antenna

Motorola PMAE4065

PMAE4065

UHF, GPS Whip Antenna

Motorola NAR6593

NAR6593

VHF, GPS Whip Antenna

Motorola NAR6595

NAR6595

1/4 Wave, 700/800 MHz, GPS Stubby Antenna

Motorola FAF5259

FAF5259

UHF Range 1, GPS Stubby Antenna

Motorola FAF5260

FAF5260

UHF Range 2, GPS Stubby Antenna

Motorola IMPRES Two-way Batteries

Motorola PMNN4485

PMNN4485

IMPRES 2 Li-Ion 2550 mAh Battery, IP68 Rugged

Motorola PMNN4486

PMNN4486

IMPRES 2 Li-Ion 3400 mAh Battery, IP68 Rugged

Motorola PMNN4487

PMNN4487

IMPRES 2 Li-Ion 4850 mAh Battery, IP68 Rugged, -30ºC Rated

Motorola PMNN4494

PMNN4494

IMPRES 2 Li-Ion 5100 mAh Battery, IP68 Rugged

Motorola PMNN4439

PMNN4439

APX Clamshell Battery Pack (requires 12 AA Alkaline batteries, not included), Submersible Battery-IP57

Motorola PMNN4547

PMNN4547

IMPRES 2 Li-Ion 3100 mAh Battery, IP68 Rugged

Motorola PMNN4573

PMNN4573

IMPRES 2 Li-Ion 4600 mAh Battery, IP68 Rugged

Mission-Critical Wireless Accessories (MCW)

Motorola NTN2570

NTN2570

Mission-Critical Wireless Earpiece with 12” cable and push-to-talk pod

Motorola NTN2571

NTN2571

Mission-Critical Wireless push-to-talk pod

Motorola NNTN8442

NNTN8442

Mission-Critical Wireless Remote Control Keyfob with programmable buttons

Motorola PMLN7052

PMLN7052

1- Wire Surveillance kit with Translucent Acoustic tube for Wireless PTT Pods

Motorola NNTN8294

NNTN8294

1- Wire Earbud for Wireless Push-to-Talk pod with 11.5” cable, Black

Motorola NNTN8295

NNTN8295

1- Wire Earbud for Wireless Push-to-Talk pod with 45” cable, Black

Motorola NNTN8296

NNTN8296

Covert Audio Kit for Mission-Critical Wireless PTT Pod

Motorola NNTN8385

NNTN8385

Y-Adapter and Retention Hook for Mission-Critical Wireless Push-to-Talk Pod

Motorola RLN4920

RLN4920

neck loop for Discreet Earpiece Kit

Motorola NNTN8434

NNTN8434

Accessory Kit, Completely Discreet Wireless Surveillance Kit

Motorola NTN2572

NTN2572

Replacement Wireless Earpiece 12-inch cable

Motorola RLN6489

RLN6489

Mission-Critical Wireless Covert Pack-N-Go Kit, Basic.

Kit includes: NNTN8296 Basic Mission-Critical Wireless Covert Kit, NTN2571 Mission-Critical Wireless Push-to-Talk (PTT) Pod and NNTN8442 Mission Critical Wireless Remote Con-trol Unit

Motorola RLN6501

RLN6501

Mission-Critical Wireless Covert Pack-N-Go Kit, Advanced.

Kit includes: All contents of Covert Pack-n-Go Kit plus RLN4922 Completely Discreet Earpiece Kit and NNTN8385 Wireless neck loop Y-adapter

Image Not Available

PMLN5880

Carry Holder for 1.5, 2.5 and 3.5 Model Radios

Motorola PMLN6802

PMLN6802

Molded Nylon carry case with quick disconnect swivel and adjustable lanyard

Image Not Available

PMLN5876

Leather Carry Case with 3” Fixed Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries

Image Not Available

PMLN5879

Leather Carry Case with 3” Fixed Belt Loop for NNTN7033 and NNTN7034 Batteries

Image Not Available

PMLN5875

Leather Carry Case with D-Rings and 2.75” Swivel Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries

Image Not Available

PMLN5877

Leather Carry Case with D-Rings and 2.75” Swivel Belt Loop for NNTN7033 and NNTN7034 Batteries

Motorola NTN8266

NTN8266

2.5” Hard Plastic Belt Clip

(not compatible with UHF Portable Radios)

Motorola HLN6875

HLN6875

3” Hard Plastic Belt Clip

Motorola HLN6602

HLN6602

Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch

Motorola RLN4570

RLN4570

Break-a-Way Chest Pack with Radio Holder Pen Holder and Velcro-Secured Pouch

Motorola PMLN5408

PMLN5408

Replacement 2.75” Leather Swivel Belt Loop

Motorola PMLN5409

PMLN5409

Replacement 3” Leather Swivel Belt Loop

Motorola 4200865599

4200865599

1.75” Wide Leather Belt

Motorola NTN5243

NTN5243

Adjustable Nylon Carrying Strap

Desktop, Single & Multi-unit Chargers

Motorola NNTN8844

NNTN8844

IMPRES 2 Multi-Unit Fast Charger with 6 Displays and 6 Integrated USB Charging Ports, 100-240V

Motorola NNTN8860

NNTN8860

IMPRES 2 Single-Unit Fast Charger, 115V

Motorola NNTN8860_TAA

NNTN8860_TAA

IMPRES 2 Single-Unit Fast Charger, 115V, TAA compliant

Motorola NNTN8863

NNTN8863

IMPRES 2 Single-Unit Fast Charger, 100-240V

Motorola NLN7967

NLN7967

Wall Mount Bracket for IMPRES Multi-Unit Chargers NNTN8844

Vehicular, Travel Chargers & Vehicular Adapter (VA)

Motorola NNTN7624

NNTN7624

IMPRES Single-Unit Rapid Rate Vehicular Charger

Motorola RLN6434

RLN6434

Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord

Ear Microphone Systems

Motorola PMLN5653

PMLN5653

IMPRES Ear Microphone with Bone Conduction and programmable button, black

Motorola 0180300E25

0180300E25

Earguard with Adjustable Loop

Surveillance Kits & Earpieces

Motorola PMLN6125

PMLN6125

1-Wire Receive-only earpiece, black

Motorola PMLN6126

PMLN6126

1-Wire Receive-only earpiece, beige

Motorola PMLN6127

PMLN6127

IMPRES 2-Wire Surveillance Kit, programmable button, black

Motorola PMLN6128

PMLN6128

IMPRES 2-Wire Surveillance Kit, programmable button, beige

Motorola PMLN6129

PMLN6129

IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black

Motorola PMLN6130

PMLN6130

IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige

Motorola PMLN6123

PMLN6123

IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black

Motorola PMLN6124

PMLN6124

IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, beige

Motorola ZMN6038

ZMN6038

2-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter

Image Not Available

ZMN6039

3-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter

Motorola ZMN6032

ZMN6032

2-Wire Surveillance Kit, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter

Motorola ZMN6031

ZMN6031

3-Wire Surveillance Kit, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter

Motorola BDN6664

BDN6664

1-Wire Receive-Only Surveillance Kit with Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783

Motorola BDN6726

BDN6726

1-Wire Receive-Only Surveillance Kit with Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Image Not Available

BDN6665

1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6727

BDN6727

1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Image Not Available

RLN5314

1-Wire Receive-Only Surveillance Kit with Translucent Tube, Beige, 3.5mm Threaded.

Requires BDN6783

Motorola RLN5313

RLN5313

1-Wire Receive-Only Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded.

Requires BDN6783

Motorola RLN5312

RLN5312

2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded.

Requires BDN6783

Image Not Available

BDN6666

1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.

Image Not Available

BDN6728

1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6667

BDN6667

2-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6669

BDN6669

2-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783

Motorola BDN6731

BDN6731

2-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6668

BDN6668

3-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6730

BDN6730

3-Wire Surveillance Kit with Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6670

BDN6670

3-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6732

BDN6732

3-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Motorola PMLN5101

PMLN5101

IMPRES Temple Transducer with boom microphone and inline push-to-talk 7580384M19 - Replacement rubber temple cover (1 pair)

Motorola PMLN5096

PMLN5096

Earset D-Shell

Motorola PMLN5102

PMLN5102

Ultra Lite Headset

Motorola RMN5058

RMN5058

Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic REX4648 - replacement foam earpad and microphone cover kit

Motorola PMLN5275

PMLN5275

Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB

Motorola RLN6490

RLN6490

XBT Operations-Critical Wireless Behind-the-Neck Headset

Motorola RLN6491

RLN6491

XBT Operations-Critical Wireless Headband Style Headset

3M Peltor Heavy-Duty Headsets

Direct Connect

Motorola RMN5137

RMN5137

MT Series Over-The-Head Headset, direct radio connect

PELTOR PART NUMBER: MT7H79A-C5063-34

Motorola RMN5138

RMN5138

MT Series Neckband Headset, direct radio connect

PELTOR PART NUMBER: MT7H79B-C5063-34

Motorola RMN5139

RMN5139

MT Series Hard Hat Attached Headset, direct radio connect

PELTOR PART NUMBER: MT7H79P3E-C5063-34

PTT Adapter Configurations

Motorola PMLN6088

PMLN6088

MT Series Over-the-Head Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT7H79A-34

Motorola RLN6477

RLN6477

MT Series Neckband Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT7H79B-34

Motorola RMN4051

RMN4051

MT Series Hard Hat Attached with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT7H79P3E-34

Motorola RMN4052

RMN4052

TacticalPro Series Over-The-Head Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT15H7A-34

Motorola RMN5135

RMN5135

TacticalPro Series Neckband Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT15H7B-07-34

Motorola RMN4053

RMN4053

TacticalPro Series Hard Hat Attached with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT15H7P3E-34

Motorola PMLN6095

PMLN6095

PTT Nexus Adapter

PELTOR PART NUMBER:FL5063-34

RSM Configurations

Motorola RMN4055

RMN4055

HT Series Listen Only Over-The-Head Headset with 3.5mm NON threaded connector

APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084

PELTOR PART NUMBER: HTM79A-34

Motorola RMN5132

RMN5132

HT Series Listen Only Neckband Headset with 3.5mm NON threaded connector

APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084

PELTOR PART NUMBER: HTM79B-34

Motorola RMN5133

RMN5133

HT Series Listen Only Hard Hat Attached Headset with 3.5mm NON threaded connector

APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084

PELTOR PART NUMBER: HTM79P3E-34

Tactical Solutions

Motorola PMLN6765

PMLN6765

Tactical PTT/VOX Interface Module

Motorola PMLN6827

PMLN6827

Tactical PTT Only Interface Module

Motorola PMLN6766

PMLN6766

Tactical Boomless Temple Transducer

(requires Interface Module PMLN6765 or PMLN6827)

Motorola PMLN6828

PMLN6828

Tactical Throat Microphone

(requires Interface Module PMLN6765 or PMLN6827)

Motorola PMLN6829

PMLN6829

Tactical Ear Microphone

(requires Interface Module PMLN6765 or PMLN6827)

Motorola PMLN6833

PMLN6833

Tactical Temple Transducer / Boom Mic

(requires Interface Module PMLN6765 or PMLN6827)

Motorola PMLN6767

PMLN6767

Tactical Remote Body PTT

(for use with Interface Module PMLN6765 or PMLN6827)

Motorola PMLN6830

PMLN6830

Tactical Remote Ring PTT

(for use with Interface Module PMLN6765 or PMLN6827)

XE Remote Speaker Microphone (RSM)

XE RSM With Xtreme Temperature Cable

Image Not Available

NNTN8575A

Xtreme Temperature Cable High Impact Green Housing

Motorola NNTN8575ABLK

NNTN8575ABLK

Xtreme Temperature Cable Black Housing

Motorola NNTN8575AYLW

NNTN8575AYLW

Xtreme Temperature Cable Yellow Housing

XE RSM With Standard Cable

Motorola NNTN8203A

NNTN8203A

Standard Cable High Impact Green Housing

Motorola NNTN8203ABLK

NNTN8203ABLK

Standard Cable Black Housing

Motorola NNTN8203AYLW

NNTN8203AYLW

Standard Cable Yellow Housing

Remote Speaker Microphone (RSM)

Motorola NMN6271

NMN6271

IMPRES XP RSM with Dual Mic Noise Suppression, Volume Control, 1-Programmable Button and Orange Button. Rugged, Submersible (IP68)

Motorola NMN6274

NMN6274

IMPRES XP RSM with Dual Mic Noise Suppression, 3.5mm threaded jack, Volume Control, 1-Programmable Button and Orange Button (IP55)

Motorola RLN6554

RLN6554

Wireless RSM with Battery, Clip (RLN6544) and Dual Unit Charger (PMLN7120)

Motorola HMN4104

HMN4104

IMPRES Display RSM with Audio Jack, Channel Selector, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68)

Motorola HMN4103

HMN4103

IMPRES Display RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68)

Motorola HMN4101

HMN4101

IMPRES RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68)

Motorola PMMN4083

PMMN4083

IMPRES RSM Windporting, Rugged (IP68)

Motorola PMMN4084

PMMN4084

IMPRES RSM with 3.5mm Threaded and NON-Threaded Audio Jack and Orange Button. Noise Canceling (IP54)

NOT INTENDED FOR FIRE MARKETS

Motorola PMMN4099

PMMN4099

IMPRES Windporting RSM with Volume Toggle Switch, Orange Button, 3.5mm NON-Threaded Jack (IP55)

Motorola PMMN4062

PMMN4062

IMPRES RSM with NON-Threaded Audio Jack, Orange Button, Noise Canceling (IP54)

NOT INTENDED FOR FIRE MARKETS

Motorola PMMN4065

PMMN4065

IMPRES RSM with Volume Toggle Switch, Orange Button and 1-Programmable Button, Windporting (IP57)

Motorola PMMN4069

PMMN4069

IMPRES RSM with NON-Threaded Audio Jack, Windporting (IP55)
