Motorola XPR2500

Motorola Solutions

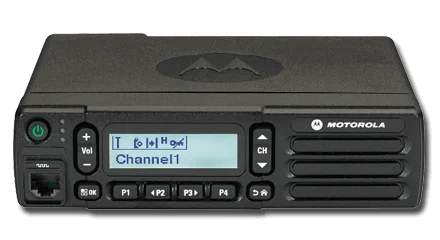

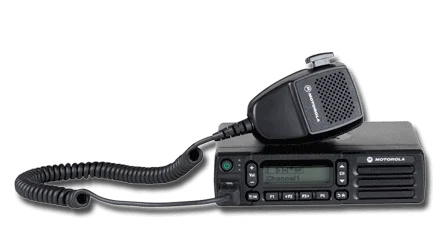

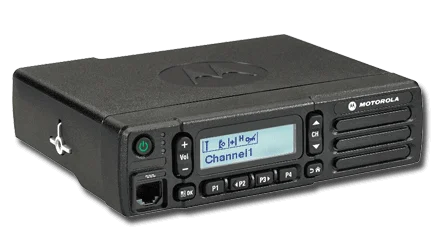

XPR2500

The power of digital communications is now within reach with the MOTOTRBO XPR 2500 mobile two-way radio. Compact and capable, the XPR 2500 keeps workers connected whether they are picking up cargo or transporting passengers. Delivering the best in digital radio technology, with features like integrated voice systems capability, twice the calling capacity, and clearer voice communications, the XPR 2500 is versatile and powerful. For those operating on analog, the XPR 2500 lets you upgrade to digital at your own pace and budget, with simple scalability to add functions and features. For affordable digital voice systems capability, the MOTOTRBO XPR 2500 gets the job done with clarity and ease.

Frequency Band:
VHF, UHF

Frequency Range:
VHF: 136-174 MHz
UHF: 403-470 MHz

Power Output:
1-25W, 25-45W - VHF, 1-25W, 25-40W - VHF

Number of Channels/Groups/Zones:
128 Channels

Channel spacing:

Dimensions H x W x D
1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)

Weight
2.9 lbs (1.3kg)

Display
Monochrome

Operating temperature

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP54

Transmit Interrupt Capability
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it's needed.

Over the Air Programming (OTAP)
Manages, writes and reads up to 5,000 radio configurations over the air.

Enhanced Privacy
Built-in scrambling for increased security.

Systems Capability
Experience the far-reaching coverage of MOTOTRBO. IP Site Connect uses the Internet to extend coverage to create a wide-area network, while Capacity Plus single-site trunking expands capacity to over 1000 users without adding new frequencies.

Compatible with Radio Management Suite
Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.

Intelligent Audio
Radio volume automatically adjusts to compensate for background noise so workers don't have to adjust their radio volume to avoid missing a call in loud situations or disturbing others when they move into quiet places.

IMPRES Audio
Whether it's a whisper during a covert operation in a dark alley or commanding a noisy fire scene, IMPRES audio accessories are loud, clear and intelligible in both analog and digital modes.

IP54 Rated
Protects your radio from dust and spills.

UHF Antennas (RF only)

Motorola HAE4010

HAE4010

UHF Wide Area Through-Hole Mount Antenna for the 406-420 MHz range, 3.5 dB Gain, Mini-U

Motorola HAE4011

HAE4011

UHF Wide Area Through-Hole Mount Antenna for the 450-470 MHz range, 3.5 dB Gain, Mini-U

Image Not Available

HAE6022

UHF Wide Area Through-hole Mount Antenna for the 403-527 MHz range 2dB Gain, Mini-U

Motorola RAE4004ARB

RAE4004ARB

UHF Wide Area Through-Hole Mount Antenna for the 445-470 MHz range, 5 dB Gain, Mini-U (with base)

Motorola HAE4002

HAE4002

UHF Urban Roof Mount 1/4 Wave Antenna for the 403-430 MHz range, Mini-U

Motorola HAE4003

HAE4003

UHF Urban Roof Mount 1/4 Wave Antenna for the 450-470 MHz range, Mini-U

VHF Antennas (RF Only)

Motorola HAD4006

HAD4006

VHF Urban Roof Mount 1/4 Wave Antenna for the 136-144 MHz range, Mini-U

Motorola HAD4007

HAD4007

VHF Urban Roof Mount 1/4 Wave Antenna for the 146-150.8 MHz range, Mini-U

Motorola HAD4008

HAD4008

VHF Urban Roof Mount 1/4 Wave Antenna for the 150.8-162 MHz range, Mini-U

Motorola HAD4009

HAD4009

VHF Urban Roof Mount 1/4 Wave Antenna for the 162-174 MHz range, Mini-U

Motorola HAD4022

HAD4022

VHF Wide Area Through-hole Mount Antenna for the 132-174 MHz range 3dB Gain, Mini-U

Motorola RLN6466

RLN6466

Low Profile Trunnion Kit keeps radio tucked up under dash

Motorola RLN6467

RLN6467

High Profile Trunnion Kit with under dash or floor mount

Motorola RLN6468

RLN6468

Key Lock Trunnion Kit provides extra protection from theft

Image Not Available

FTN6083

In-Dash Mounting Kit - DIN

Motorola HKN4137

HKN4137

Power Cable to Battery - 10 foot, 15 amp 14 AWG

Motorola HKN4191

HKN4191

Power Cable to Battery - 10 foot, 20 amp 12 AWG

Motorola HKN4192

HKN4192

Power Cable to Battery - 20 foot, 20 amp 10 AWG

Motorola HKN9327

HKN9327

Ignition Sense Cable

Image Not Available

3012045001

Trunnion Mounting Screws

External Push-to-Talk (PTT)

Motorola RLN4836

RLN4836

Emergency Footswitch can be used with a visor microphone

Motorola RLN4856

RLN4856

Remote Mount Footswitch Push-to-Talk to interface with your visor microphone

Motorola RLN4857

RLN4857

Remote Mount Pushbutton Push-to-Talk to interface with your visor microphone

Motorola PMMN4090

PMMN4090

Compact Microphone

Motorola PMMN4091

PMMN4091

Heavy-Duty Microphone

Motorola PMMN4089

PMMN4089

Keypad Microphone

Motorola GMNN4065

GMMN4065

Visor Microphone

Image Not Available

PMLN6481

Telephone Style Handset with hang-up cup

Image Not Available

PMMN4098

Desktop Microphone

Mobile Microphone Accessories

Motorola HLN9073

HLN9073

Microphone Hang-Up Clip (Requires installation)

Motorola HLN9414

HLN9414

Universal Microphone Hang-Up Clip (No installation required)

Image Not Available

HSN8145

7.5W External Speaker

Motorola RSN4001

RSN4001

13W External Speaker

Motorola GMKN4084

GMKN4084

Speaker Extension Cable

The Motorola XPR 2500 Series is available in the following models.

  • AAM02JNH9JA1AN 136-174, 1-25 Watts, 128 Channels
  • AAM02JQH9JA1AN 136-174, 25-45 Watts, 128 Channels
  • AAM02QNH9JA1AN 403-470, 1-25 Watts, 128 Channels
  • AAM02QPH9JA1AN 403-470, 25-40 Watts, 128 Channels
